High Temperature PET Polyester Tape / PVC Electrical Tape for 3D Print

China High Temperature PET Polyester Tape / PVC Electrical Tape for 3D Print supplier
High Temperature PET Polyester Tape / PVC Electrical Tape for 3D Print supplier High Temperature PET Polyester Tape / PVC Electrical Tape for 3D Print supplier High Temperature PET Polyester Tape / PVC Electrical Tape for 3D Print supplier

Large Image :  High Temperature PET Polyester Tape / PVC Electrical Tape for 3D Print

Product Details:

Place of Origin: DongGuang of China
Brand Name: GuoQiang
Certification: ISO ; SGS
Model Number: PT-008

Payment & Shipping Terms:

Minimum Order Quantity: 1000 Rolls
Price: negotiation
Packaging Details: Our normal packing is24/ 36/48/72 rolls per carton, we can as per customer's requirements.
Delivery Time: 10-20 days
Payment Terms: Western Union, T/T, MoneyGram
Contact Now
Detailed Product Description
Material: Polyester(PET) Film Adhesive: Acrylic, Hot Melt
Rated Voltage: As Customer Required Industry: Painting Or Electronics
Feature: Anti-counterfeiting Out Diamter(mm): <650
Thickness(mm): 0.012~0.15 Elongation(%): >100
High Light:

waterproof electrical tape

,

insulated electrical tape

Heat Resistant Silicone Adhesive Green PET Polyester Tape/PVC Electrical Tape

Product Description:

FEATURES

* Strong adhesion

* Flexibility, conformability

* High temperature resistance

* Various thicknesses for choice

* Peeled off without leaving an adhesive



APPLICATION

*Anodizing

*Electronic Assembly

*General Purpose Masking

*Masking Electronic Components

*Powder Coating

*Plating

*Photo Splicing

*Shipping and Packaging



CONSTRUCTION



Green PET Film
Silicone Adhesive



Product Parameter:




Item NKS-3565SIG NKS-5080SIG NKS-2565SIG NKS-2590SIG
Color Clear/Green/Blue Clear/Green/Blue Clear/Green/Blue Red/Yellow
Carrier Polyester Polyester Polyester Polyester
Adhesive Silicone Silicone Silicone Silicone
Carrier Thickness (mm)



0.035



0.05



0.025



0.025

Adhesive Thickness (mm)



0.025



0.03



0.04



0.065

Total Thickness (mm)



0.06



0.08



0.065



0.09

Adhesion (N/25mm) 6 6 6 8
Tensile Strength (N/25mm)



135



220



115



135

Elongation at Break (%) 40 50 35 35
Corrosion Resistance 1 1 1 1
Storage Condition 20℃,65RH 20℃,65RH 20℃,65RH 20℃,65RH
Long Term Heat Resistance (℃)



180



180



180



180

Short Term Heat Resistance (℃)



220



220



220



220

RoHS Complied
Width 2~980mm
Length 33m/66m



1. Low-Cost.

2. Excellent tensile strength.

3. Good effects in insulation.

4. High voltage characteristic.

5. High temperature resistance and durability characteristic.

6. Wide application.

7. Pass the system of national and international quality certification.



Adhesive to Note:


1) glued should keep dry and clean, otherwise it will affect the adhesive tape stick and effect;
2) exert a certain force, make the combination of adhesive tape and glued thing well; After completion
3) when its use function, to peel tape as soon as possible, avoid the phenomenon of glue;
4) do not have UV resistant function of the adhesive tape, to avoid sun exposure, appearincomplete glue
    phenomenon;
5) different environment and different don't stick, the same tape will show different results;
    Such as glass. Is widely used in metal, plastic, etc., before the first trial.




Product Show:

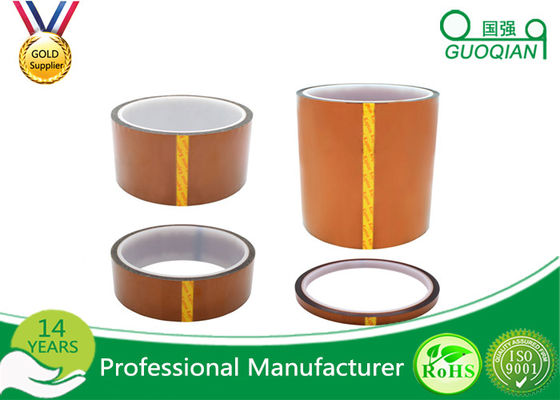

High Temperature PET Polyester Tape / PVC Electrical Tape for 3D Print

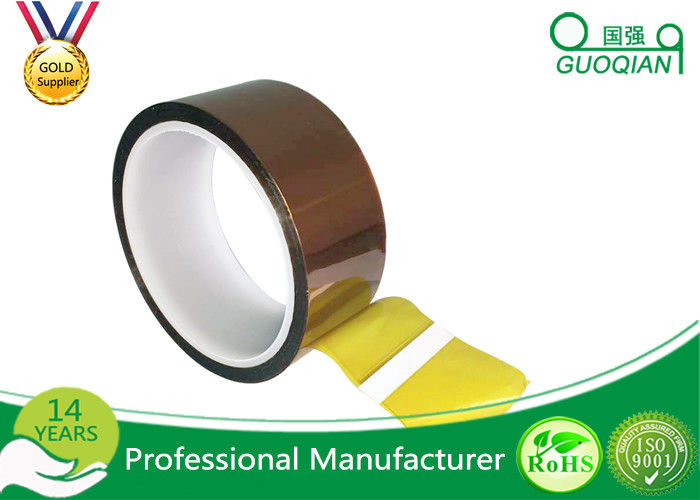

High Temperature PET Polyester Tape / PVC Electrical Tape for 3D Print
